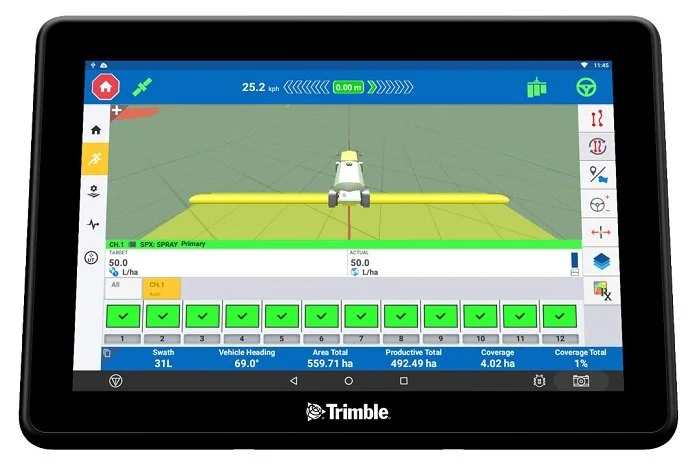

The GFX-1060™ display is Trimble Agriculture's latest 10-inch (25.6 cm) Android-based display for controlling and executing all in-field work through the Precision-IQ™ field application interface. With faster processing, greater memory and more storage capacity, this robust display makes handling even the most complex farm operations easy.
Features of the GFX-1060 Display:
10-inch High quality touch screen (25.6cm)
Ultra Powerful Quad-Core iMx8 PLUS
Android OS
Precision-IQ™ application
Wi-Fi and Bluetooth compatible
Trimble Ag software compatible (including wireless transfer)
Compact design economic on cab space
RAM Mounting System
Easy install
Upgradable with a range of licenses available for additional features including:
ISOBUS Universal Terminal
ISOBUS Task Controller
ISOBUS Multi-Product Control
Implement: Field IQ™ system
Prescriptions
Serial Rate and TUVR
VRS correction Client
Auto Asset Detection
Advanced Guidance Lines
Technical Specifications:
Resolution1280 x 800Size10" color (25.6 cm) display - Projected Capacitive (optically bonded)BrightnessBrightness 900 (candela/m2)System ProcessorQuad-Core iMx8 PLUS
1x Cortex A72@1.6GHz
4x Cortex A53@1.2GHz

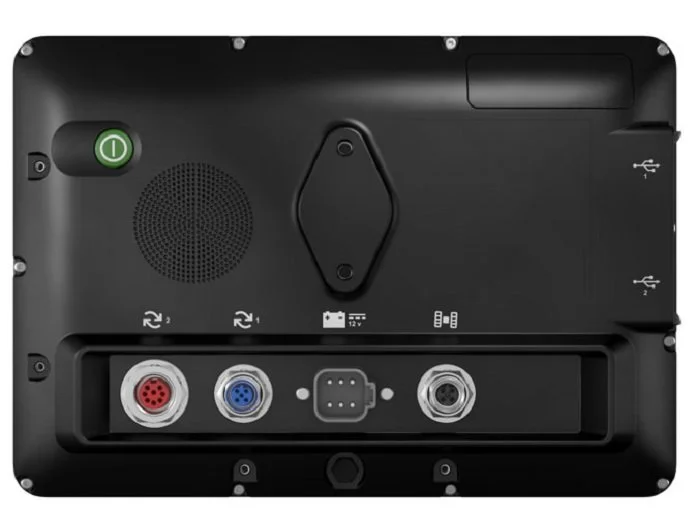

4 GBStorage (eMMC/RAM)32 GBOperating SystemAndroid 9.0Internal GNSSRequires NAV-500 or 900 Controller ReceiverMechanicalDimensionsCast aluminum with stainless steel fixing screws - L 268.75 mm x W 186.9 mm x D 49.5 mm (at connector belt)Weight2.0 kgs (4.4 lbs)MountRAM 1.5" Diamond 2 boltEnvironmentalRatingIP66Operational Temp-20 °C to 60 °C (-4 °F to 140 °F)ConnectionsPower/CANDeutsch DT15-6pUSB (2 x side facing)USB 2.0 Type A (1 Host, 1 OTG)Wi-FiIntegrated 802.11b/g/n/ac (2.4 & 5 GHz*)
*May vary depending on country complianceBluetoothBluetooth 5Expansion Port (I)(RS-232, 2 I/O) - M12 B-code - Female 5 pin (blue insert) - (Imp Lift, Radar Out, or Video In (PAL/NTSC)Expansion Port (II)(RS-232, 2 I/O CAN) - M16 Female 8 Pin (Red insert) - (Imp Lift, Radar Out, or Video In (PAL/NTSC) CANx2
