Nav-960 Guidance Controller Kit

Product Details

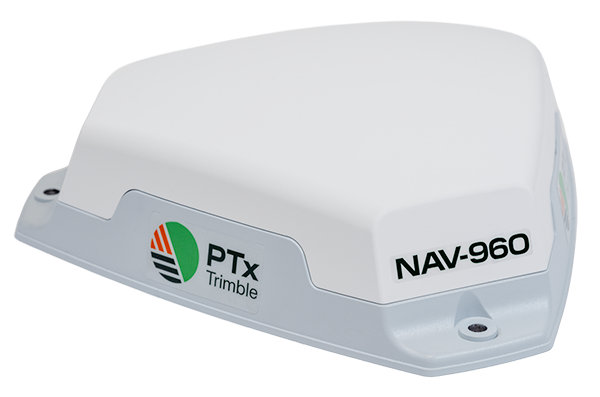

The all-new NAV-960™ guidance controller from PTx Trimble is our most advanced GNSS receiver and positioning engine to date, delivering industry leading uptime for every field operation. Building off of the enormous popularity of the NAV-900 guidance controller, the NAV-960 is the perfect foundation for fieldwork today and ready to handle exciting developments in the future.

Key Features:

• Full range of correction signals including GPS, GLONASS, Galileo, Beidou, and QZSS constellations

• The NAV-960 is easily upgraded with a range of licenses that can be purchased for additional GNSS and Auto Guidance feature support

• Full range of plates available for integration to the OEM mounts

• Drop-in upgrade for existing NAV-900 installations

• Compatible with all GFX-series displays

• Enhanced processing power to easily handle remote output, water management and blade height control operations

Notes:

• Is delivered in Base Hardware mode

• Requires Software Activation license

No Longer Supported:

• Does not support NAV-III

• Does not support EZ Pilot (Legacy)

• Does not support Omni Star

Technical Specifications

GuidanceElectricEZ-Steer®, EZ-Pilot® Pro, and Autopilot™ Motor DriveGuidance ReadyCANBus J1939HydraulicExternal VDM-912Housing & MechanicalHousing Material(Upper) Low-profile, chemical resistant polymer casing with UV-resistant paint
(Lower) Aluminum casing with powder coat paintDimensions254 mm x 228 mm x 64 mm (WxLxH)Weight1.41 kgsMountsTrimble QR, OEM integration plates, Spar MountConnectorsTo GFX displayM12 4-pin connectorTo External RadioM12 5-pin connectorFor I/ODeutsch 12-pin connectorCommunication and I/OWi-FiIntegrated 802.11b/g/n/a (2.4 & 5 GHz)**BluetoothBluetooth 5.1Serial Ports2 Tx/Rx, 1 Tx onlyCAN Ports2Digital OutSonalertAnalog InRemote EngageNMEA Output1, 5, 10 HzGNSS Receiver SpecificationsConstellationsGPS: L1 C/A, L1C, L2C, L2P, L5
GLONASS: L1 C/A, L2 C/A, L2P, L3
Galileo: E1, E5 AltBOC, E5a, E5b, E6
BeiDou: B1I, B1C, B2I, B2a, B2b, B3I
QZSS: L1 C/A, L1C, L1S, L2C, L5, L6
SBAS: L1, L5Satellite CorrectionsCenterPoint® RTX Fast
CenterPoint® RTX
RangePoint® RTX
SBAS (WAAS, EGNOS, MSAS)
xFill®
xFill PremiumLand-Based CorrectionsRTK
CenterPoint VRSCorrection FormatsCMR+, sCMR+, sCMR+ with SecureRTK, CMRx, CMRxe (RTX corrections), RTCM 3.0, RTCM 3.1, RTCM 3.2, RTCM 3.3

Inertial Measurement Unit (IMU)GyroscopeYes: 3-axis, 200 HzAccelerometerYes: 3-axis, 200 HzTechnicalInput Power9 - 16 VDC, 17.5 W maximum (9 - 16 VDC, consumes 5.5 W with no accessories connected, 17.5 W with external accessories connected)Output PowerSame as input, 1A maxProcessor (CPU)Quad-Core/AM62Ax
4x Cortex A53@1.4GHz
2x Cortex R5F@800MHzRAM2 GBStorage4 GB / eMMC
64 MB / QSPIOperating SystemLinuxOperational RangeOperating Temperature-40 °C to 70 °C (-40 °F to 158 °F)Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)Humidity100% condensingIngress ProtectionIP66, dustproof, waterproof, IPx9K**Depending on local regulations
